Structural Design & Sample Boxes

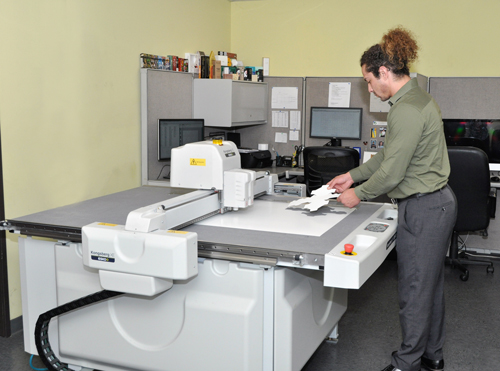

Coming up with an innovative product to sell is the mission of the customer; however designing custom packaging boxes that compliment your product and help it stand out from the competition is another priority. Our experienced structural designers can help you with come up with a creative custom box design that will bring your package to life. We can make your vision a reality. Imperial proudly features a state-of-the art structural design facility complete with Artios CAD software for drafting your custom boxes and a Kongsberg table to produce high quality samples on various paperboards. We can handle any request from a standard box to a more complicated box with dividers, ensuring that design specifications comply to your strict requirements. We offer a myriad of box styles with different sizes and shapes.

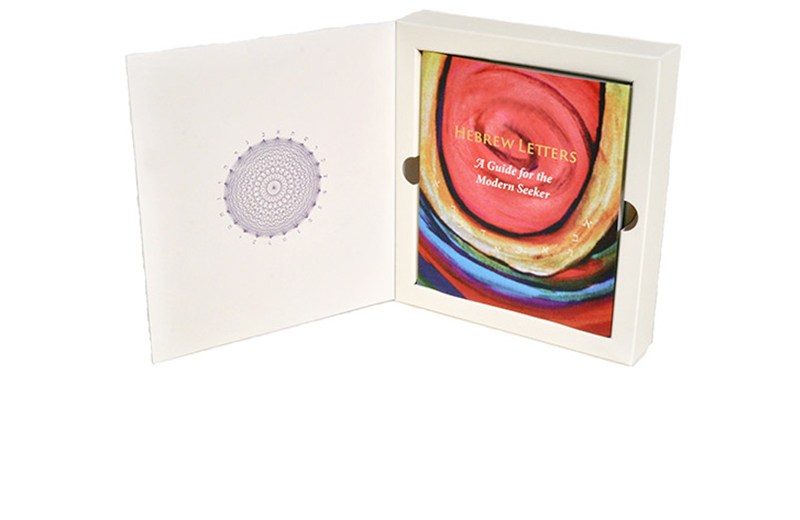

Below is an example of a box that we designed for a customer to package their book and card deck. The box is actually multiple boxes which accommodate the various components.

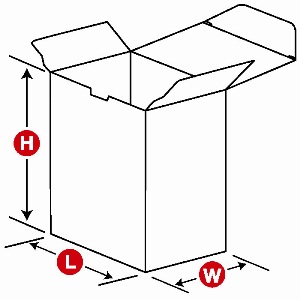

How to Measure a Folding Carton

When requesting a quote for your custom boxes, it is important to be able to provide accurate measurements. There are three dimensions to the basic folding carton: Length (L), Width (W), and Height (H). In written form, the dimensions should appear in that order (L x W x H).

LENGTH (L) refers to the front panel dimension from left to right.

WIDTH (W) is the second panel dimension from the front of the box to the back of the box.

HEIGHT (H) is the distance between the two open ends of a carton, or from the top of the box to the bottom of the box.

Contact us to discuss your requirements for a custom box design and samples or Request a Quote for your next custom packaging boxes. Thinking outside the box about boxes… that’s Imperial Printing & Paper Box Mfg. Co.
